FC Hydraulic Gate Valves

FC Hydraulic Gate Valves
email Feedback On Our Website
Item : V002
Details :
 FC HYDRAULIC GATE VALVES
1. "FC" series gate valves, which are designed and manufactured By Nanjing Oilfield Machinery Co., Ltd. Works, with light on-off force moment and reliable seal. Specific back seal mechanisms make on-size operation convenient.
2. "FC" series gate valves are mostly used to all sorts of Wellhead Christmas Trees and manifolds and casing valve, etc., with working pressure such as 3000/5000psi, 10000psi and 15000psi, inside nominal diameter 1-13/16" 2-1/16" 2-9/16" 3-1/16" 4-1/16" 5-1/8" 7-1/16" , saitsfy all requirements for geologic exploration and oil production.
3. Requirement for material, physical and chemical data and pressure test conform to API 6A, nineteenth edition.
4 FC series gate valves have the outlet and seals. Entering the valve from one end, fluid push the seat move toward the valve plate and make them integrate closely, thereby , gain the seal.
5. For the two ends of the HYD FC series gate valves, any one end can be as inlet or outlet end.

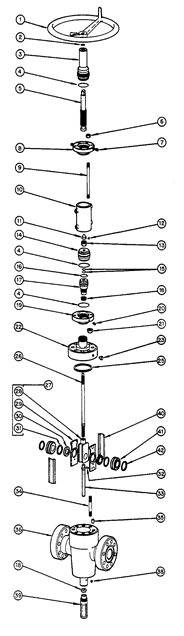

1. Handwheel

2. O- Ring

3. Adjusting Nut

4. O-Ring

5. Locking Screw

6. Cylinder Head Nut

7. Set Screw

8. Blind Cylinder Head

9. Cylinder Head Stud

10.Cylinder

11.Centering Pin

12.Set Screw

13.Piston Lock Nut

14.Piston

15.O-Ring

16.O-Ring

17.Gland

18.Stem Packing

19.Lower Cylinder Head

20.Relief Valve

21.Bonnet Nut

22.Bonnet

23.Grease Fitting

24.Valve Check

25.Bonnet Gasket

26.Stem

27.Gate& Seat Assy.

28.Gate

29. Retainer Plate

30.Seat Ring

31.Seal Ring

32.Pin

33.Lower Stem

34.Bonnet Stud

35.Bonnet Locating Pin

36.Body

37.Name Plate

38.Pipe Plug

39.Stem Protector
