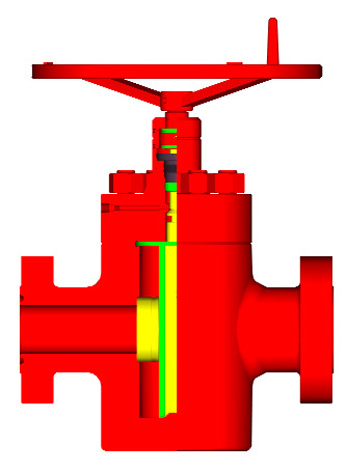

FC Manual Gate Valves

FC Manual Gate Valves
email Feedback On Our Website
Item : V001
Details :

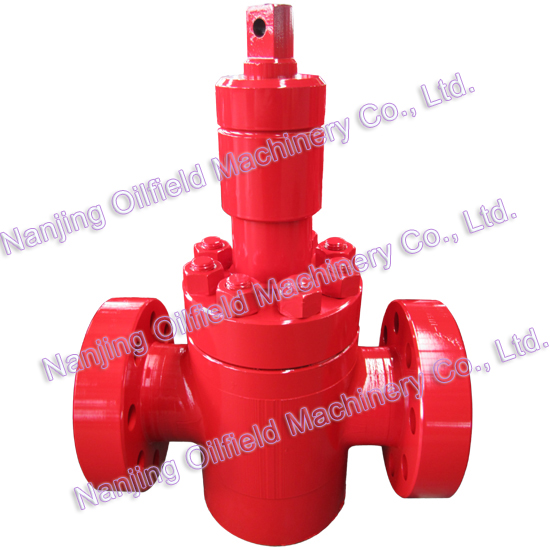

 FC MANUAL GATE VALVES

(Interchangeable with Cameron Model FC Gate Valve)
The FC gate valve features a non-rising stem with a slab gate, Full-Bore Thru-Conduit Design, Floating Slab Gate and Seats , floating seat ring body bushing design to provide safe dependable service. It is available in flanged or threaded ends in standard bore sizes from 1-13/16” thru 7-1/16” in working pressures of 5,000 psi thru 15,000 psi wp. Seat rings, body bushings, gate, stem are easily replaced in the field, Simple routine maintenance program limits repairs, eases operation, protects against corrosion, and extends service life.
SPECIFICATION
● Manufactured and Tested in Accordance with API Spec 6A
● Forged Steel Body and Bonnet
● A True Bi-Directional Valve
● Low Operating Torque
● Quick Release Hand Wheel
● API Spec 6A PSL, 1, 2, 3
● Material Class DD, EE, FF, to NACE MR-01-75

Available from 5000 psi to 15,000 psi in all Full-Bore Sizes

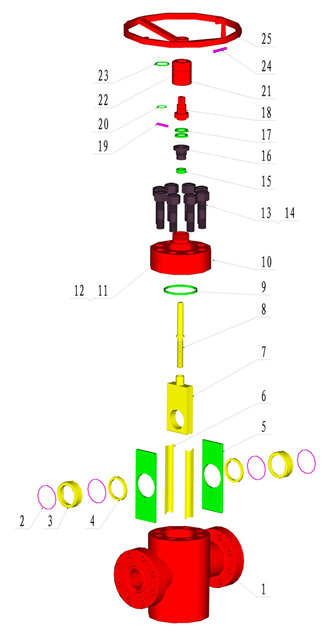

PARTS LIST

Item

Description

Qty

Material

Remark

1

Body

1

4130



*2

Seat Seal Ring

4

TFLON



*3

Seat

2

410



*4

Body Bushing

2

Stellite.6



*5

Retainer Plate

2

Steel



*6

Guide

2

410



*7

Gate

1

4130+HF



*8

Stem

1

410



*9

Bonnet Gasket

1

Steel



10

Bonnet

1

4130



*11

Check Valve

1

Assy.



*12

Grease Screw

1

Assy.



13

Nut

8

5140



14

Stud

8

4140



*15

Stem Packing

1

TFLON



16

Packing Gland

1

Steel



*17

Bearing Thrust

2

Steel



18

Stem Adapter

1

Steel



19

Stem Pin

1

Steel



*20

O-Ring

1

NBR



21

Bonnet Cap

1

Steel



*22

Grease Fitting

2

Assy.



*23

O-Ring

1

NBR



24

Handwheel Pin

1

Steel



25

Handwheel

1

Steel



*Major Repair------─ One Each For One Year’s Service
